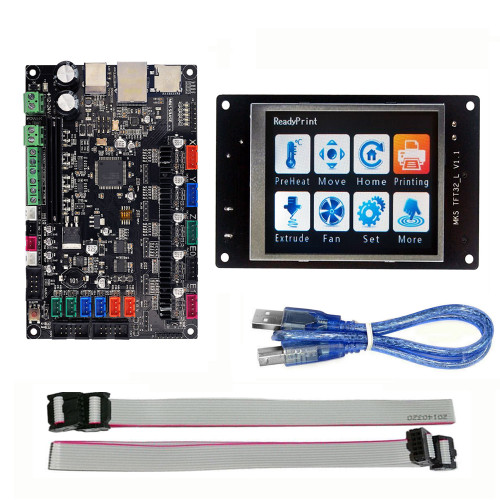

MKS SBASE V1.3 +MKS TFT32 3.2'' LCD Touch Display

(3 reviews) Write a Review
Gift wrapping:
Options available
Shipping:
Free Shipping
  • MKS SBASE V1.3 +MKS TFT32 3.2'' LCD Touch Display
  • MKS SBASE V1.3 +MKS TFT32 3.2'' LCD Touch Display
  • MKS SBASE V1.3 +MKS TFT32 3.2'' LCD Touch Display
$76.24

Description

3D printer 32bit Arm platform Smooth control board MKS SBASE

V1.3 +MKS TFT32 3.2'' LCD Touch Display

MKS SBASE V1.3

Overview

MKS SBASE is a latest motherboard for 3D Printer ,designed by Makserbase (MKS).

It is based on ARM platform and uses 32bit 100M Cortex-MS MCU-LPC1768.

Features

1. Using 32bit 100M Cortex-M3 MCU-LPC 1768, and improve its performance highly.
2. Support highly modular open source firmware , easy for secondary development.
3. Support network function, then proceed remote control via IE Explorer.
4. Using DRV8825 stepper driver which supports 32-microstep and with excellent cooling.
5. Currents of the stepper motor can be set directly, which can avoid the damage .
6. Using high quality FR-4 4 layers PCB and special design for cooling.
7. Using professional power chip, support 12V-24V DC input.
8. Good to work with MKS LCD12864 and MKS TFT touch screen.If you use the other 12864 we can’t sure it can work .
(Can't work with MKS MINI12864LCD,OLED12864 and LCD2004 display.)

Wiring

Wiring is based on available information.

View AllClose

Warranty Information

In order to assure your warranty from us,please take a clear picture or video for unpacking,if the parcel is empty,damaged or incorrect weight,please ask your Post Office or Logistics to provide official document,especially the claim request paper

We provide 6 months warranty for all products except accessories. The warranty of items would be failed if you fix or disassemble it without our agreement. Please show us the clear video if you have after-service problems.

View AllClose

Additional Information

Model Number:
20160117002016009100
Ship From:
China
View AllClose

3 Reviews

  • 5

    Five Stars

    Posted by Baldwin on Jul 21st 2017

    nice purchase!

  • 5

    starsFunctional and stylish upgrade

    Posted by Balduino on Jul 21st 2017

    Excellent interface upgrade from the standard simple monochrome LCD + dial found with most 3d printer setups. Using with Marlin. The menu system is a little bit quirky but everything important is there, such as pre-heat, home, move, fan control. I'm using this with an MKS Base 1.5 board, and it's quite simple to set up; likewise it appears it'd be straightforward to connect to ramps 1.4. Note that there are different versions of the firmware (for this touchscreen + sd reader), you'll find instructions in another review, simple enough to flash. Overall, this thing seems to be worth the money - but be somewhat careful with handling/installation, I fried my first one without knowing how (guessing static charge).

  • 5

    Great Screen, but with my Modified firmware it's AMAZING!

    Posted by Arran on Jul 21st 2017

    I love this screen as a development platform, when you get the screen it has a fine user interface, but it's a bit dated. I have spent a good amount of time modifying the interface to make what i believe is an extremely well put together printer controller. I have posted below a link where you can download all the files for my updated GUI version of the firmware. The board uses a 4 pin uart connection to interface with the controller and will work with absolutely any control board that has the ability to interface that way. Link to the firmware- [...] I have also attached some photos of the interface i have designed. All you have to do to use it is copy the firmware files onto the sd card and insert it into the screen then power on.
